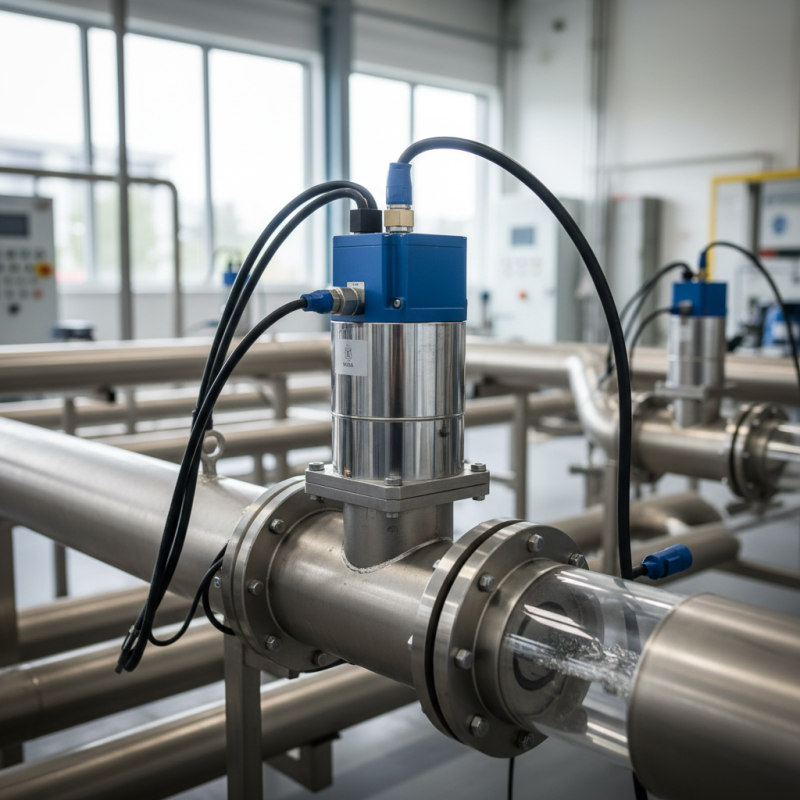

What is a Magnetic Flow Meter and How Does It Work?
Magnetic Flow Meters are essential tools in various industries. They measure the flow of conductive liquids using magnetic fields. As John Smith, a renowned expert in the field, once stated, "Magnetic Flow Meters bring precision to fluid measurement." This technology is vital in ensuring accurate readings, especially in water treatment and chemical processing.
The core principle is simple. When conductive liquid flows through a magnetic field, it generates a voltage. This voltage is proportional to the flow rate. Magnetic Flow Meters are non-intrusive, meaning they do not alter the liquid's flow characteristics. Their reliability can sometimes be overshadowed by complexities in installation and calibration, requiring trained personnel.
In conclusion, while Magnetic Flow Meters excel in accuracy, users should be cautious. Understanding their limitations is crucial. Not all liquids are suitable for measurement. Proper application is key to achieving desired results. Continuous learning and adaptation are part of leveraging this technology effectively.
Understanding the Basic Principles of Magnetic Flow Meters
Magnetic flow meters, or mag meters, are essential devices used for measuring the flow of conductive fluids. They operate on Faraday's law of electromagnetic induction. When a conductive fluid flows through a magnetic field, it generates a voltage proportional to its flow velocity. This voltage is measured and converted into a flow rate.
One key advantage of magnetic flow meters is their accuracy. According to a recent industry report, these devices achieve an accuracy rate of ±0.5% to ±2% of the flow rate. This precision makes them invaluable in industries such as water treatment, food and beverage, and chemical manufacturing. However, they are only suitable for conductive liquids. This limitation can lead to potential inaccuracies if the fluid conductivity is too low.
Tip: Regular calibration of mag meters is crucial for maintaining accuracy. Routine checks help ensure reliable readings.
Additionally, external factors like temperature and pressure can affect measurements. It's vital to install flow meters considering these parameters to avoid erroneous data. Some reports suggest that even minor installation errors can lead to a 10% deviation in accuracy.
Tip: Always adhere to installation guidelines and consult professionals when necessary. Proper installation enhances the meter's performance and longevity.
The Role of Faraday's Law in Magnetic Flow Measurement
Magnetic flow meters operate on the principles outlined by Faraday's Law of electromagnetic induction. This law states that a changing magnetic field will induce an electric current in a conductor moving through it. For magnetic flow meters, it means that when a conductive fluid flows through a magnetic field, the movement generates a voltage proportional to the flow rate. This simple yet powerful principle supports various applications, especially in industries like water treatment and food production.
In recent years, the global magnetic flow meter market has seen notable growth. According to a report by Research and Markets, the market was valued at over $546 million in 2021 and is projected to reach $868 million by 2026. This growth stems from the meters' accuracy and reliability. However, challenges still persist. Magnetic flow meters struggle with non-conductive and low-conductivity fluids. Their operation requires a minimum conductivity, which isn’t suitable for all types of fluids.
Precision is vital. Incorrect installation or calibration can skew results significantly. Some installations report errors resulting in inefficient processes. Those considering magnetic flow meters must evaluate application-specific requirements. Understanding the limitations of magnetic flow meters will lead to better decisions and improved measurement accuracy. It is essential to approach these tools with a combination of expectations and realism, particularly regarding their operational environment.
Magnetic Flow Meter Measurement Data
This chart represents the flow measurement in liters per minute (LPM) using magnetic flow meters over a period of time. The data is based on hypothetical measurements reflecting typical operational ranges for magnetic flow meters.
Key Components of a Magnetic Flow Meter and Their Functions
Magnetic flow meters are essential tools in various industries. They measure the flow of conductive liquids, relying on electromagnetic principles. Key components of these devices include the sensor, transmitter, and electrode.
The sensor serves as the heart of the flow meter. It is usually wrapped in a coil. When an electric current flows through the coil, it generates a magnetic field. As the conductive liquid flows through this field, it induces a voltage proportional to flow rate. This design minimizes friction losses, offering high accuracy. Reports suggest that these meters can achieve an accuracy of ±0.5% of the reading under ideal conditions, making them reliable choices in many applications.
The transmitter processes the voltage signals from the sensor. It converts these signals into readable flow rates. A critical aspect of the transmitter is its calibration. Proper calibration ensures that the readings reflect true flow conditions. Meanwhile, electrodes contact the liquid, which creates potential differences. The materials often require selection based on the liquid’s properties, such as corrosiveness. Each component must work harmoniously to avoid inaccurate measurements, highlighting the importance of proper maintenance in the operational lifecycle of a magnetic flow meter.
Common Applications of Magnetic Flow Meters in Various Industries

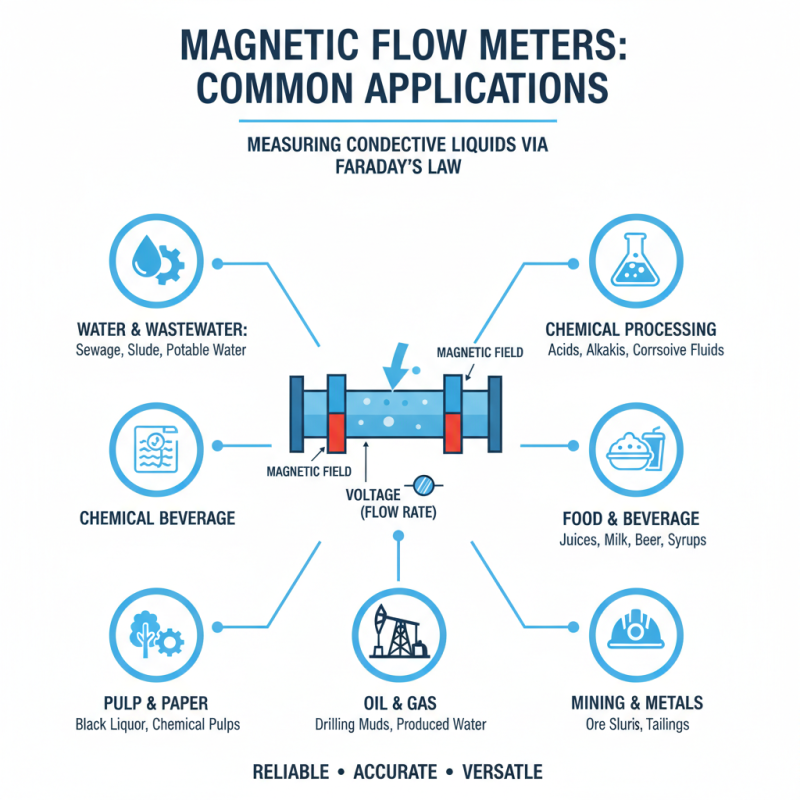

Magnetic flow meters are widely used across different industries. They excel in measuring the flow of conductive liquids. These meters rely on Faraday’s law of electromagnetic induction. When a liquid flows through a magnetic field, it generates a voltage. This voltage correlates to the flow rate.
In the water treatment industry, magnetic flow meters are crucial. They monitor wastewater and drinking water flow, ensuring compliance with safety standards. In the chemical industry, these meters handle corrosive and non-viscous fluids. Their accuracy helps prevent costly production errors. However, they cannot measure non-conductive liquids.
Food and beverage industries also benefit from magnetic flow meters. They ensure precise ingredient mixing and maintain product quality. Hygiene standards are critical in this sector, making it vital to use reliable equipment. Yet, installation can be tricky, often requiring expert input. This reflects the importance of understanding each application deeply.
Advantages and Limitations of Using Magnetic Flow Meters
Magnetic flow meters offer several advantages that enhance their effectiveness in various applications. They excel in measuring the flow of conductive liquids. This makes them ideal for industries like water treatment and food processing. Their non-invasive design ensures minimal interference with the fluid, leading to accurate and stable readings. Magnetic flow meters also have no moving parts, resulting in less wear and tear, and lower maintenance costs over time.
However, there are some limitations to consider. These meters cannot measure non-conductive fluids, such as oils or gases, which limits their versatility in some operations. Additionally, installation can be challenging. Proper alignment and positioning are crucial for accurate measurement. In some cases, environmental factors, like electromagnetic interference, can affect readings. These issues highlight the need for careful planning and troubleshooting during implementation. Users must weigh these pros and cons when deciding to adopt this technology in their processes.
